Peptide Injection Pen Kit

Reusable adjustable pen + cartridge + needle tips

A reusable, adjustable subcutaneous injection pen for accurately dispensing reconstituted research peptides in dialled-mg increments. Supplied as a complete kit in a protective carry case.

Mechanism#

Load a filled glass cartridge, attach a click-on pen-needle tip, dial the required amount using the rotating grip, then dispense. The graduated window shows the selected setting, and the case keeps everything organised between uses.

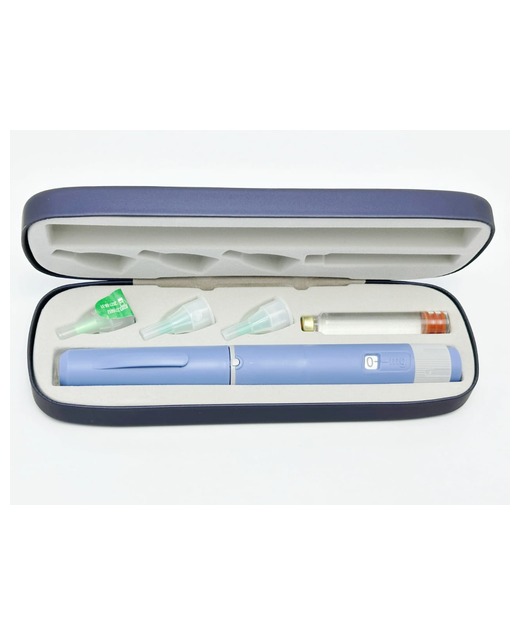

What is in the kit#

• The pen body. Reusable, with the dose dial, the graduated window and the cartridge holder. This is the part that is not consumable and the part that wears.
• A refillable glass cartridge. Glass rather than plastic because it does not sorb peptide onto the wall the way some polymers do, and because it can be inspected against the light for undissolved material.
• Click-on pen-needle tips. Single-use consumables, replaced independently of the pen and available in a range of gauges and lengths.
• A protective carry case. Holds the assembled pen, spare tips and the cartridge together, and keeps the dial from being knocked off its setting in a drawer.

How the dose dial works#

The dial is the whole point of the device, and it is worth understanding mechanically rather than by feel. Turning the rotating grip advances an internal lead screw by a fixed pitch. Each step is detented, so it both clicks audibly and stops: the setting is held by the mechanism rather than by whoever is holding it. The graduated window shows the figure currently selected, and it is the window that should be read, never the number of clicks counted by ear.

Dialling past the intended figure is the common error, and on most pens it is corrected by turning back rather than by dispensing the excess. Turning back draws the lead screw down again without moving the plunger, so nothing is expelled; dispensing the excess wastes material and leaves the cartridge contents no longer matching what the label says. After a dispense the dial returns to zero on its own, and that return is one of the things worth watching: a dial that does not come fully back to zero, or that creeps off a setting when the pen is put down, is reporting a mechanism that is no longer holding position.

Priming matters for the same reason. A new cartridge or a newly attached tip has air in the path between the two, and that air is dispensed before any liquid is. Expelling a small priming volume until material appears at the tip fills the path, so the next dialled figure corresponds to what actually leaves the needle. A pen that is dialled and dispensed without priming will deliver short by roughly the volume of the air it had to clear first.

What an adjustable pen is, and how it differs from a syringe#

A pen injector is a reusable metal or composite body that holds a glass cartridge of reconstituted material and dispenses a selected volume through a disposable screw-on or click-on needle tip. The volume is chosen on a graduated dial rather than read off a barrel, and the mechanism stops at the selected setting. That is the practical difference from a syringe: a syringe asks the operator to judge a meniscus against a printed scale every single time, while a pen returns the same displacement from the same dial position repeatedly, independent of eyesight, lighting and the angle the device is held at.

For laboratory work that means two things. Repeated withdrawals from one cartridge are more consistent than repeated withdrawals into separate syringes, and the operator is not re-reading a scale under pressure. It also means the pen is a mechanical device with tolerances: it is only as accurate as its last service, and it should be checked rather than assumed.

Pen needles, gauges and why they are separate#

Pen needle tips are consumables, sold and replaced independently of the pen body. Two numbers describe them. Gauge is the outside diameter, on an inverted scale — a 32G needle is thinner than a 29G one, and the numbers run higher as the needle gets finer. Length is stated in millimetres and is independent of gauge, so a short needle can be thick and a long one fine.

Thinner needles have a narrower lumen, so viscous or incompletely dissolved material passes through them more slowly and with more force on the plunger. That is worth knowing when a peptide has been reconstituted at high concentration, or when a solution has been refrigerated and not allowed to return to room temperature. If a tip feels blocked, the answer is a new tip — not more force.

Tips are single-use by design. The lubricant coating and the bevel geometry are specified for one pass; after that the point is measurably blunter under magnification. Reusing them also carries the material from one withdrawal into the next, which is exactly the contamination route a sealed cartridge is meant to avoid.

What to check each time#

• That the cartridge is seated square in the holder and the seal is not pierced off-centre
• That a small priming volume has been expelled, so the path from cartridge to tip is filled
• That the dial returns cleanly to zero and does not creep between settings
• That the tip is removed after use rather than left on, which leaves an open fluid path
• That used tips go straight into a sharps container, never into general waste

What goes wrong#

Four failures account for most of what gets reported, and three of them are recoverable.

A cross-threaded or badly seated tip. Click-on and screw-on tips both want to go on square. Started at an angle, a tip will seem to seat and then leak around the hub under pressure, or refuse to come off afterwards. The fix is to remove it, inspect the thread or collar for damage, and start a fresh tip square. Forcing a tip that has started crooked is what turns a consumable problem into a pen-body problem.

A cartridge seated off-centre. The holder locates the cartridge so that the plunger meets the stopper flat. Seated at an angle, the septum is pierced off-centre, which can core a fragment of the seal or allow the stopper to tilt as it advances. The symptoms are a dispense that delivers short, or visible material around the shoulder of the cartridge. Unseat it and reseat it square before dialling anything.

A dial that will not advance. Almost always the cartridge is empty, or there is less left in it than the figure being dialled: most pens will not allow a setting larger than the material remaining, and the resistance is the mechanism refusing rather than a fault. Check the cartridge before concluding the pen has failed. If a dial will not advance against a cartridge that plainly has material in it, stop using it.

A blocked tip. Viscous solution, material that has not fully dissolved, or a solution still cold from refrigeration will all pass slowly through a fine gauge, and the instinct is to push harder. Pushing harder on a blocked tip risks the hub rather than clearing the lumen. Fit a new tip, let a cold solution reach room temperature first, and consider a lower gauge number for a consistently viscous preparation.

The one that is not recoverable is a cracked cartridge holder, a plunger that no longer advances smoothly, or a dial that slips under load. Those are mechanical wear, and a pen showing any of them should be retired rather than worked around — an injector that cannot hold a setting is not doing the single job that distinguishes it from a syringe.

What a first kit actually needs#

The commonest question we get from somebody buying a pen for the first time is not how it works. It is what else they have to buy alongside it, and the honest answer is that a pen on its own does nothing. Four things have to be on the bench before anything can be loaded.

The pen. Bought once. It is a dosing instrument, not a consumable, and with reasonable handling it outlasts everything else here.

A cartridge. The 3 ml glass cartridge is what the reconstituted material goes into, and it is what the pen drives. One cartridge holds one preparation. It is not refilled from a second vial once started.

Pen needle tips. One per use, no exceptions — see the section above on why a reused tip is both blunt and an open fluid path. A pack of ten is a realistic starting quantity for a single cartridge; most people get through them faster than they expect.

Something to reconstitute with. Freeze-dried material arrives as a solid and has to be brought into solution before any of the above matters. Bacteriostatic water is the usual choice where a cartridge will be drawn from more than once, because the benzyl alcohol in it inhibits bacterial growth over the working period. Sterile water suits a single preparation used immediately. Our bacteriostatic versus sterile water guide sets out which is appropriate when, and how to reconstitute covers the technique.

Alcohol wipes are the fifth item, and the one most often left off a first order. The cartridge septum and the working surface both want wiping and air-drying before anything is drawn. They cost pennies and they are the difference between a clean path and a hopeful one.

What you buy once, and what you buy every time#

Worth being clear about, because it changes what a kit costs over a year rather than on the first order.

So the pen and the case are a one-off; the tips, wipes, cartridges and water are the running cost. That is the opposite way round from a syringe, where the instrument itself is the thing you throw away.

Pen or syringe, for a first purchase#

Neither is better in general. They fail differently, and which one suits depends on what the work looks like.

A pen is worth it when the same volume is drawn repeatedly from one preparation. The dial repeats a setting far more reliably than a hand lining up a graduation mark, and the cartridge stays sealed between uses rather than being pierced by a fresh needle each time. The cost is that you are committed to the cartridge format.

A syringe is worth it when volumes vary, or when a vial is being used once. Nothing is simpler, nothing has fewer parts to seat wrongly, and the graduation is right there on the barrel. The cost is repeatability and dead space — material stranded in the barrel and hub that never comes out. Our syringes and needles guide goes through gauge, graduations and dead space in full.

Plenty of benches end up with both, which is not indecision: they are different tools.

Handling and storage#

Keep the pen body dry and at room temperature in its case. It is a precision mechanism, so it should not be autoclaved, submerged, or cleaned with solvents that attack the dial markings — wiping the exterior with a 70% isopropyl pad is enough. A cartridge in use is stored according to the stability of what is in it, not the pen: reconstituted peptides generally belong at 2–8°C and should be allowed to reach room temperature before the next withdrawal, which also thins the solution and reduces the force needed at the tip.

Pens are mechanical and they do wear. A dial that slips, a plunger that no longer advances smoothly, or a visible crack in the cartridge holder are all reasons to retire the unit rather than work around it.

Colourways#

The kit is currently stocked in eight colourways: Black, White, Powder Blue, Teal, Purple, Pink, Red and Silver. Royal Blue, Bright Blue, Raspberry, Orange, Champagne, Warm Grey and White with a black cap are made but not held at the moment; they appear on the order page greyed out, so the range is visible without any of it being sellable until it is back on the shelf.

The cap colour is part of the name rather than a decorative note, and that is deliberate. Some bodies are made with more than one cap, and the cap is then the only thing separating one from another. A bench with more than one pen on it is the ordinary case, and a pen that can be identified across a room at a glance is a pen less likely to be picked up in mistake for its neighbour. Choosing a distinct colour per cartridge is the cheapest labelling system available.

Sizes and pricing#
